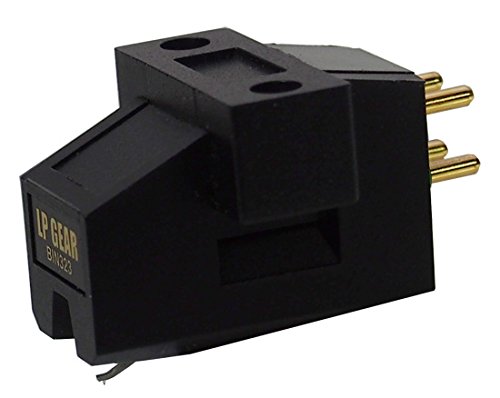

The LP GEAR BIN 323 was conceived and designed during the pinnacle age of phono cartridges and is thus founded on the exuberance, best practices and exclusive knowledge of that golden and fertile time. Revived with additional learning, select newer parts, tight tolerances and old world craftsmanship, the BIN 323 like vintage years of superior wine has improved with age to become the best in doing what it does - nothing at all but sweet authentic music extracted from the grooves! The BIN 323 plays glowingly with flowing musical ease and rightness that takes your breath away - it's like the mind knows when music is real.2 The BIN 323 offers harmonic and spectral richness, flowing musicality - harmonic notes, transients and counterpoints flow cascading and colliding cohesively from start to fading end. Your ears will hear the delightful delicacy, natural sound quality and missing timbre extracted from the grooves. LP GEAR BIN 323 Specifications ○ Tonearm mount: 1/2 inch ○ Type: Moving coil (MC), high output ○ Output voltage at 1kHz, 3.54 cm/sec: 1.7 mV ○ Frequency response: 15 - 40,000 Hz ○ Load impedance: 47 kΩ ○ Channel separation at 1 kHz: 25 dB ○ Output balance at 1 kHz: <1.0 dB ○ Tracking force range: 2.0 - 2.3 g (2.0 g recommended) ○ Coil inductance at 1kHz: 630 μH ○ Static compliance: 15 x 10-6 cm/dyne ○ Dynamic compliance: 10 x 10-6 cm/dyne ○ Stylus: Nude Square Shank Line Contact ○ Stylus shape: 5 x 20 µm ○ Cantilever: Special aluminum alloy ○ Vertical tracking angle: 23° ○ Dimensions: 17(H) × 17(W) × 24.7(D) mm ○ Weight: 4.0 g ○ Accessories included: Brass non-magnetic mounting hardware
